Saw Cutting

For structural shapes

Hagerty serves the structural fabrication industry with beams, channels, angles, tees and zees cut to meet your specifications. Precision band sawing affords exacting tolerances. Miter cutting to tight tolerance available.

Questions? Contact one of our helpful sales managers.

Overview Video

Equipment Details

MachineWidth (min)Width (max)Height (max)Length (min)Length (max)Bevel (max)Tolerance
Amada15″12±116″*
Marvel 212520″25″60°±116″*
Marvel #1518″16″none±116″*
Behringer Saw16″12″60° (up to 12″)±116″*
Behringer Saw40″22″±116″*
Behringer Saw32″163460° (up to 12″)±116″*
Marvel P-150C and P-100C5/8″6″ rounds and 4-1/8″ rectangles20‘

*Tighter tolerances are possible upon request.

Circular Saws

Whether cutting angles, flats, rectangles, channels, beams, or tubing, we know a number of variables play a role in achieving finished accurate parts.

Equipment Details

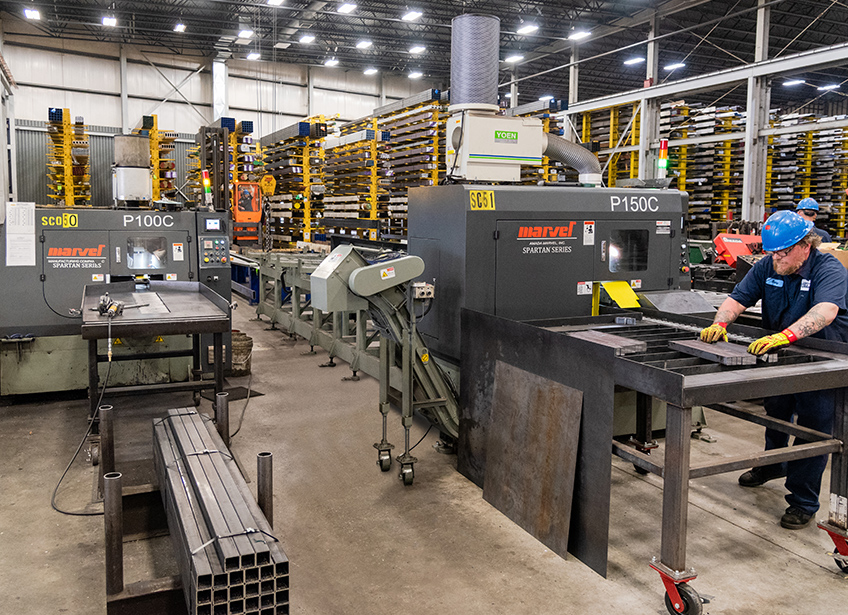

  • Marvel P-150C & Marvel P-100C carbide circular saws
  • High-powered 20HP and 15HP blade drives
  • Minimum cut widths: 5/8” rounds and rectangles
  • Maximum cut widths: 6” rounds and 4-1/8” rectangles
  • Accommodates stock up to 20’ in length

Downloads

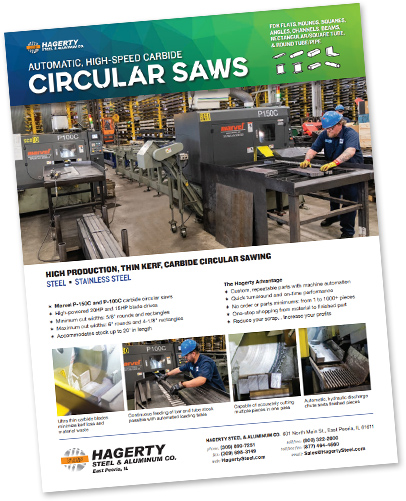

Saw Cutting Brochure

Why Hagerty?

  • Quick turnaround and on-time performance
  • No parts minimums — from 1 to 1,000+ pieces
  • Save on labor, machining, forming and time
  • One-stop shopping from material to finished part
  • Reduce your scrap, increase your profits
  • Additional processing available to meet your finished part needs
